수처리기자재
Water Treatment Equipment
PATENT NO.0349383

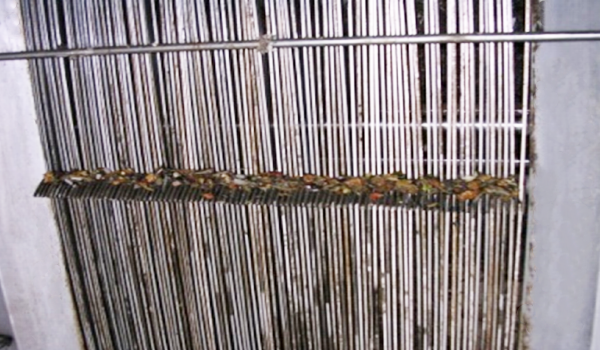

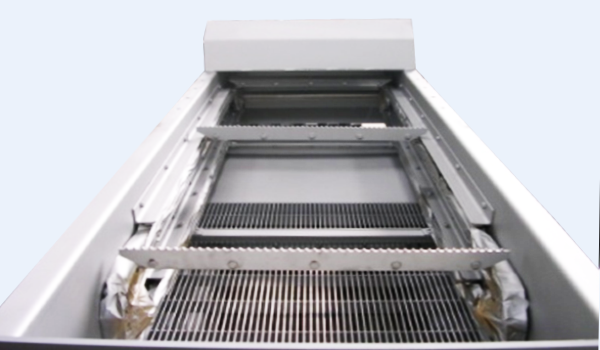

COARSE, FINE-SCREEN
Patented
Coarse and fine screen for intake process in the sewage treatment plant is unique contruction equiped with front and rear side screen together, hence, our SJE sceen can make functions improved for catching of inert matters from waste water stuff which is different for convetional front side screen.
Features
- Substances between screen gap can be thorouhgly removed due to two screen process with front and rear side.
- This screen has so easier structure to replcae wedge.
PATENT NO.10-0868533

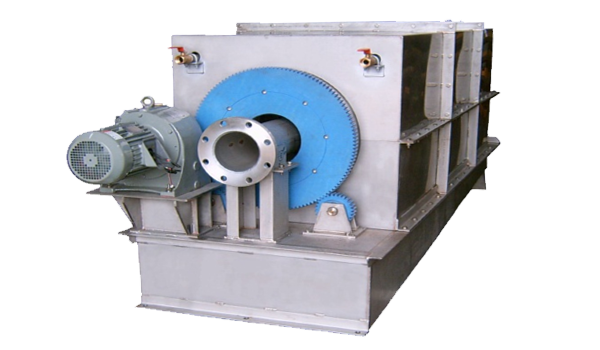

DRUM SCREEN
Patented
It is used for the purpose of dewatering from inert matters containing in the intake water. Inequality inert matters can be treated step by step. ( 1st and 2nd screen)
Features
- Accoring to different size of inert matters , it can be dewatering by seperately step (1st and 2nd) Thus, our drum screen makes efffective dewatering technoloy without any clogging problem.
PATENT NO.10-0965873
SLUGDE COLLECTOR
Patented
Bottom part of scraper for sludge collector can be closly contact with bottom of sedimentation pond, eventhough it's bottom line is irregular, our scraper could be adjusted to contact tightly with bottom of pond.
Features
- It can prevent from scum floating by removing of salivated sludge in the pond due to perfect cleaning process of remained sludge in the dead volume of pond caused by irregular cement bottom line.
PATENT NO.10-0925702

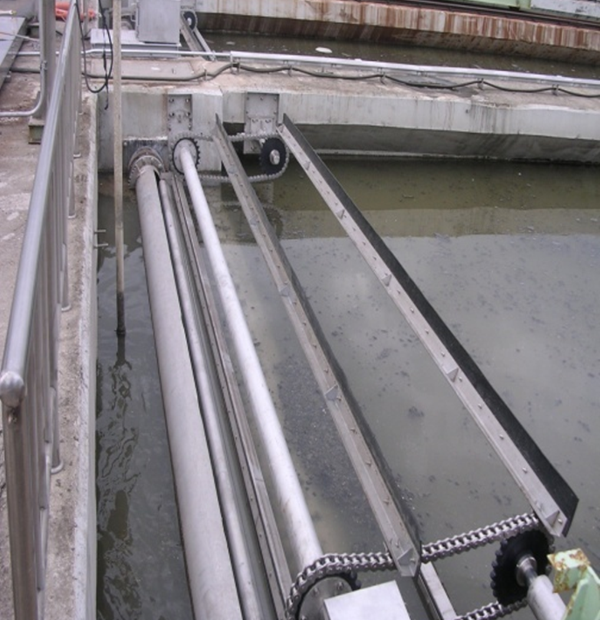

SCUM SKIMMER
Patented
This unit is a system for inducing floated scum from inlet to outlet pipe by using scraper.
Features
- Convetional equipment was facing difficulties to induce floated scum from inlet to outlet. That make some problem with so much influent water including scum to the pipe SJE scum skimmer can be easily moving of scum from long distance to the outlet pipe.
PATENT NO.10-038467

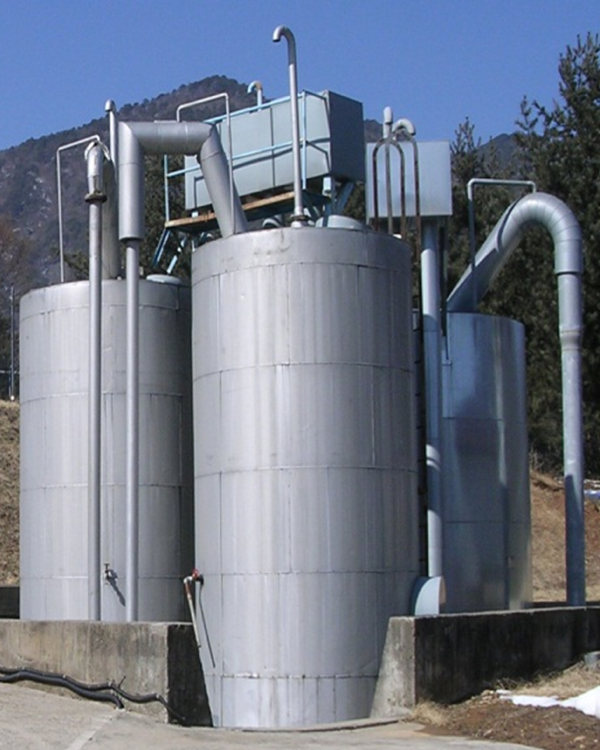

SAND FILTER
Patented
This unit equipes with non-powered 1st filtering screen unit to influent water part of full automatic filtration facility.
Features
- It can save cleaning water supply and shorten backwashing time too much by reducing back washing work due to installation of first non-powered screen unit in the influent part of filtration facility.
PATENT NO.10-0960175

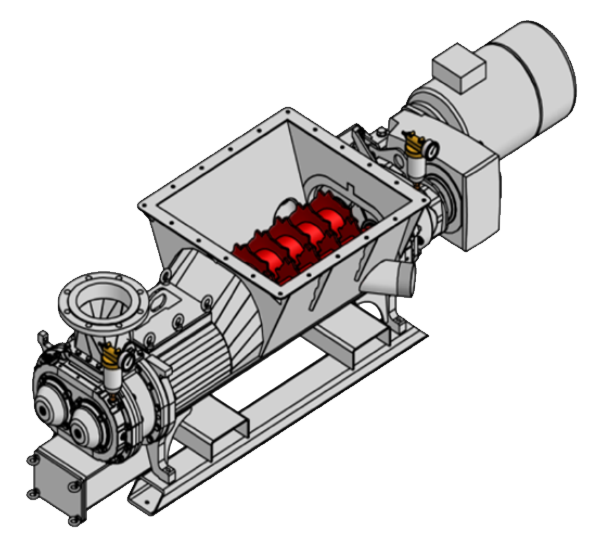

CAKE, ADULTERATION FEEDING SYSTEM
Patented
This unit makes it easy flow of inert matter , solid matter and high viscosity by macerating and mixing in this feeding system.
Features
- It is a kind of twin-screw conveyor with knife vane which could cut solid matters into small pieces, then mixing it with injection liquid to make adjustable feeding of constant flow rate without any noise and pulsation.

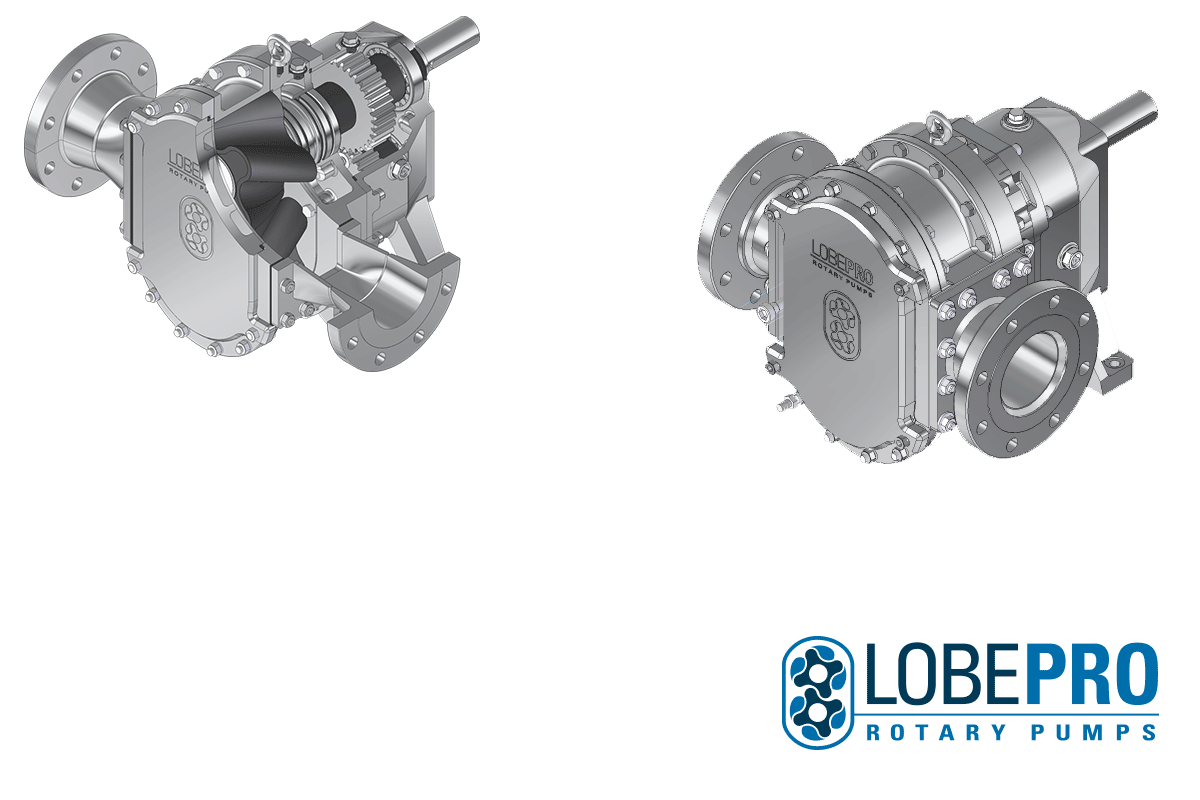

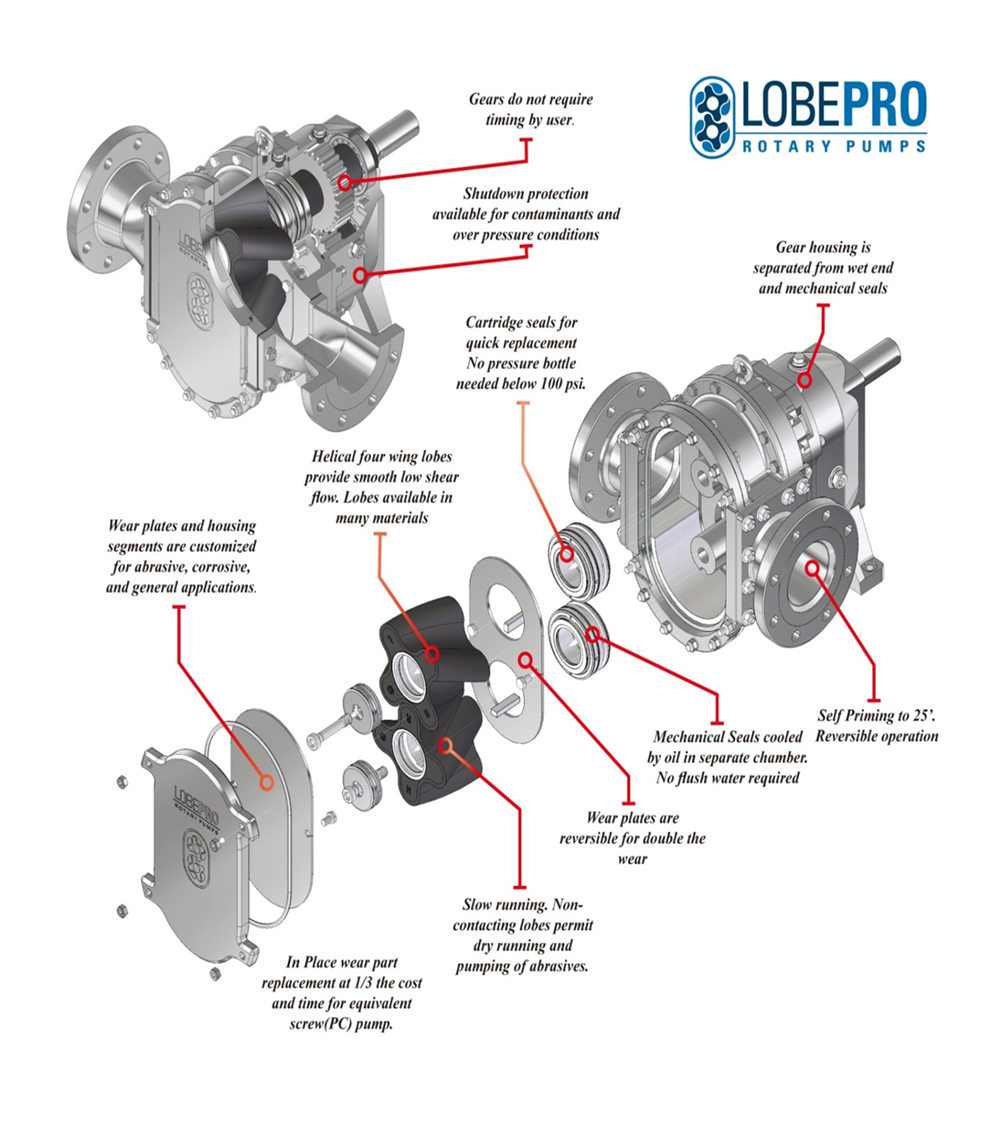

LOBEPRO PUMP
Features
- This positive displacement rotary lobe pump has 4 wings helical type gear coated NBR which can feed constant flow rae of sludge without any noisy and pulsation, This pump is suitable for high viscosity liquid , oil and sludge for every industry and life span is much longer than conventional lobe and centurifugal pump.
